Idaho RapidCycler Capillary Thermal Cycler w WARRANTY

Idaho RapidCycler Capillary Thermal Cycler w WARRANTY

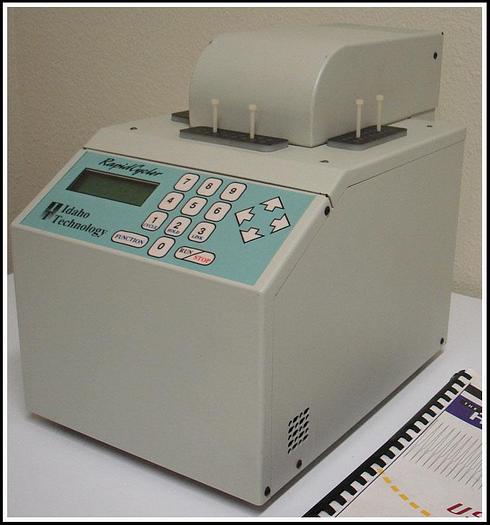

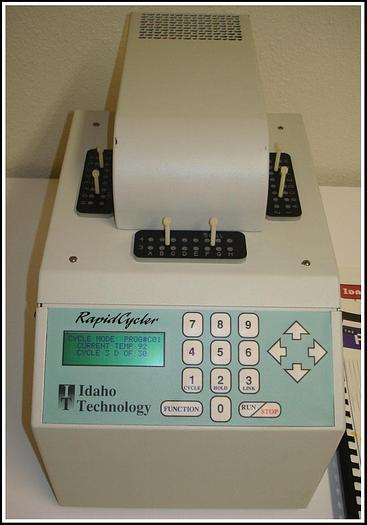

This is a Nice Used PCR Machine in Excellent Working and Physical Condition with Minimal Wear and Scuffs. The RapidCycler can complete a 30 cycle reaction in less than 15 minutes. Unit Uses Air Turbine for Rapid Cycling in Capillary Tubes.  Unit Comes as Pictured with User's Manual (Please e-mail us for a pdf copy) and Power Cord (No Consumables). Unit will be Guaranteed for 30 Days Allowing Enough Time for your Lab to Fully Test and Inspect.

Specifications:

• Capacity: 48 samples
• Max. Throughput: 1536 samples per 8 hour day (15 min. runs of 48 samples each)
• Cycle Times: Between 30-60 s. for most applications. Thirty 3-temp. cycles in 10-30 min.
• Program Capacity: 99 cycle programs, 99 hold programs, 99 link programs.
• Linking: Up to 10 cycle or hold programs can be linked together
• Accuracy: +/- 0.5 C
• Ramp Rate: 9.9 C/s. peak rate. 99 selectable rates.
• Temperature Range: ~ 30 C (room temperature) - 99 C
• Resolution: 1 C
• Variation: Between and within sample < 1 C.
• Time Resolution: 0.1s.
• Power Requirements: 100-120 VAC, 8.0A or 220-230 VAC, 4.0A

The RapidCycler can complete a 30 cycle reaction in less than 15 minutes. The RapidCycler instruments use microcapillary tubes or 1.5 mm reaction cuvettes, which are ideally suited to temperature cycling since they have very thin walls and extremely high surface area to volume ratio. Capillary tubes cut sample temperature lag to less than a second. The use of air as the cycling medium results in high temperature ramp rates. Tornado-like conditions inside the cylindrical reaction chamber ensure both temperature uniformity and rapid heat exchange with the sample. This allows the RapidCycler to spend less than one second at the high and low temperatures and still be certain that each sample has reached the target temperature. A fraction of a second is adequate for the reaction.
