Bio-Tek ELx808 IU Microplate Reader w Incubator COMPLETE W WARRANTY
Bio-Tek ELx808 IU Microplate Reader w Incubator COMPLETE W WARRANTY
$2,450 (USD)
Description
Bio-Tek ELx808 Microplate Reader w Gen5 Software COMPLETE W WARRANTY

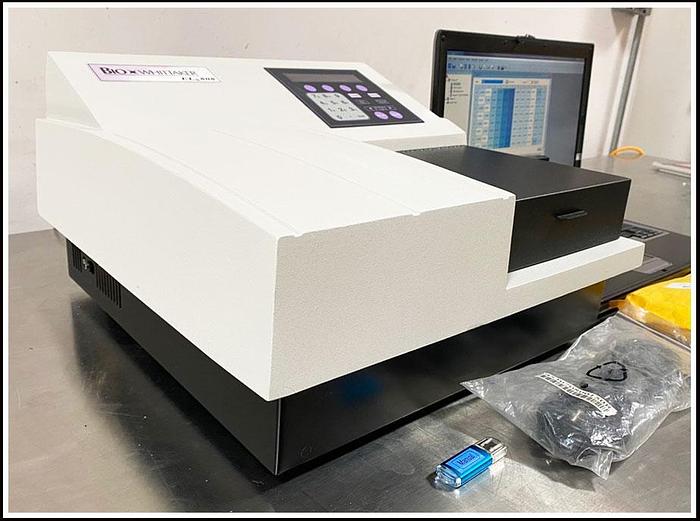

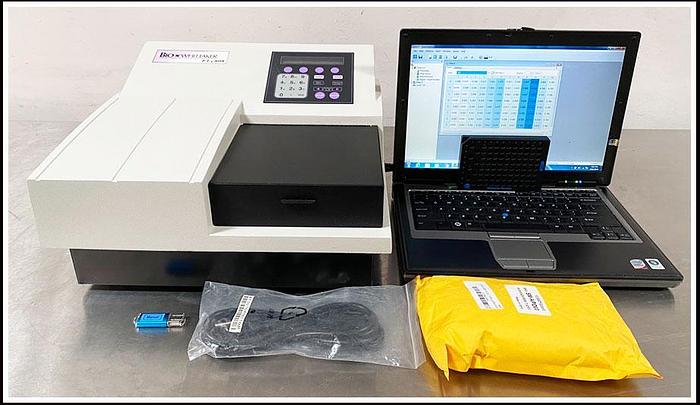

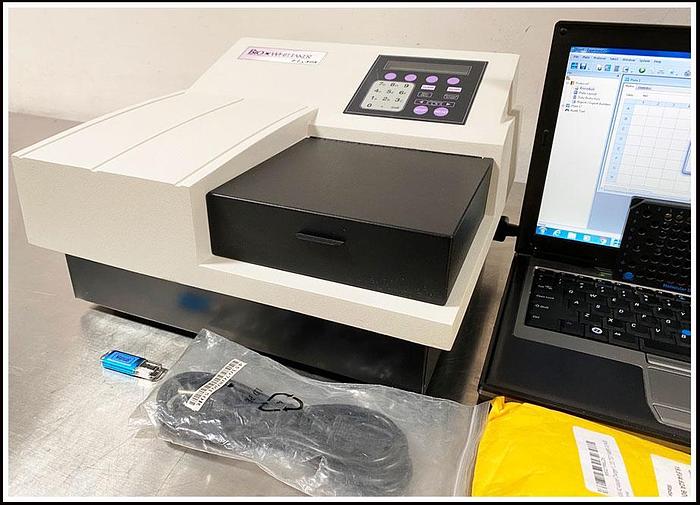

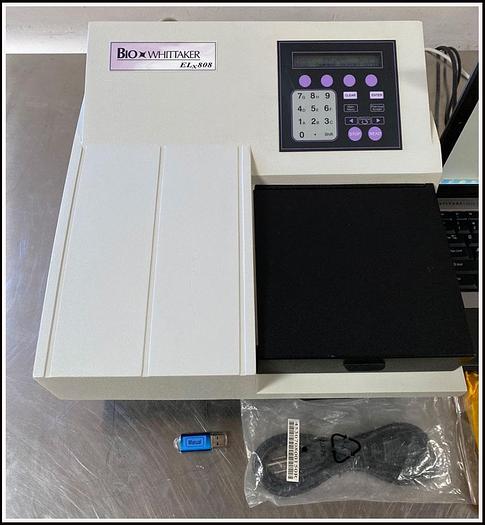

This is a Nice Used Bio-Tek Microplate Reader with Gen5 Reader Control Software. Model ELx808 IU. Unit is in Excellent Working and Physical Condition. Reader Comes Complete as Pictured with Dell Laptop (Loaded with Gen5 vs 2.03 Software)/Comm Cables/Power Cords. Reader Passes all Self Diagnositics and Has Been Tested Against a Calibration Plate with the Results Provided Below. Comes with Five Installed Filters (405, 450, 490, 630, 340nm). Please Note, Reader was Made By Bio-Tek for BioWhittaker and has the BioWhittaker name on the Casing but it the Same as Any Elx808 IU and Runs Gen5. Reader will be Guaranteed for 30 Days Allowing your Lab Enough Time to Fully Test and Inspect.

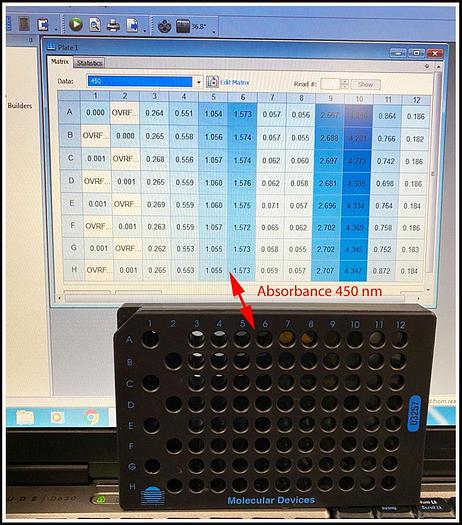

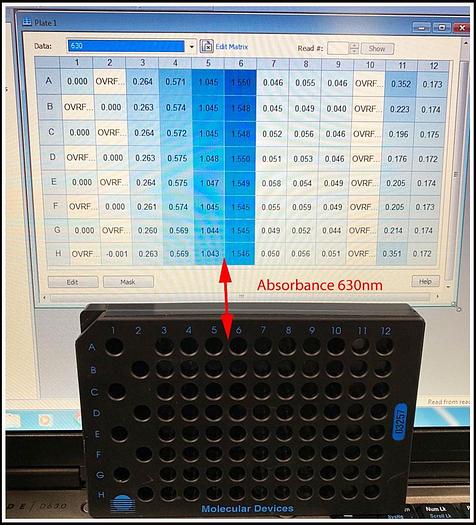

This Reader's Calibration Test Plate Results: 1) 405nm Reading: * Expected .679, 1.214, 1.815 * Actual: .679 1.223, 1.826 2) 450nm Reading: * Expected .627, 1.113, 1.666 * Actual: .634, 1.133, 1.671 3) 490nm Reading: * Expected .626, 1.101, 1.646 * Actual: .624, 1.103, 1.651 4) 630nm Reading: * Expected .614, 1.069, 1.601 * Actual: .619, 1.074, 1.606
Included:

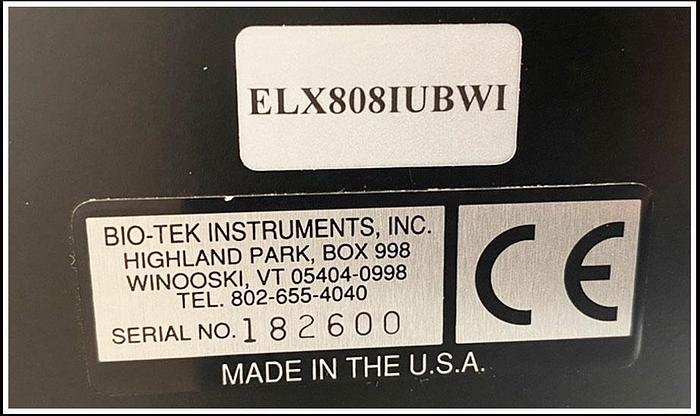

- Bio-Tek ELx808 IU SN# 192600

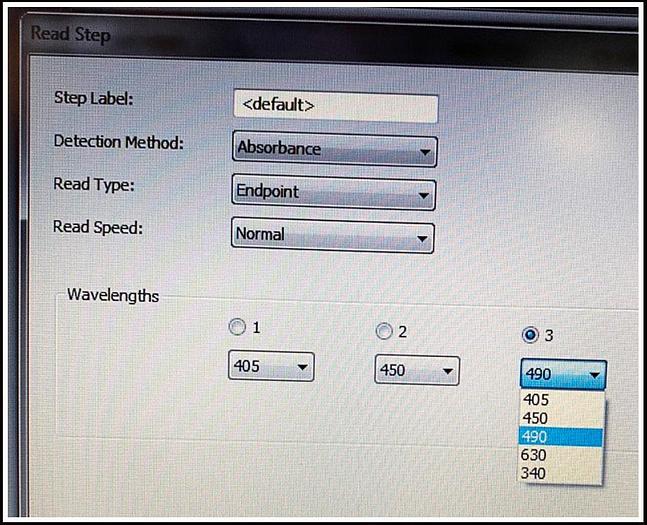

- Five Installed Filters (405, 450, 490, 630, 340nm)
- Dell Optiplex Laptop Latitude D630, Windows 7, Gen 5 vs 2.03
- All Power and Communication Cables
- User's Manual
Specifications:
- Detection Method: Absorbance Installed Filters (405, 450, 490, 630, 340nm)

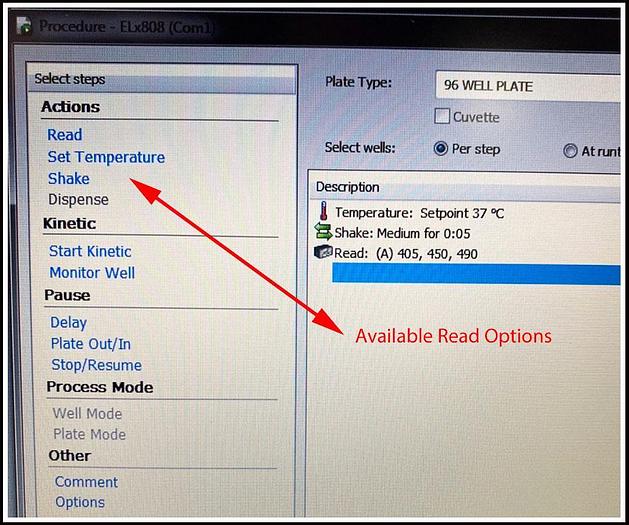

- Read method: Endpoint, kinetic, linear scanning
- Microplate types: 96-well plates
- Onboard Incubator: YES
- Shaking: YES
- Software: Gen5 ™ Data Analysis Software
- Onboard software: 55 user-programmable protocols
- Light source:Tungsten Halogen
- Wavelength range: 380 to 750nm (Depending on Installed Filters)
- Bandpass:10 nm
- Dynamic range:0 to 3.0 OD
- Resolution:0.001 OD
- Filter wheel capacity: 6 positions
- Filters supplied: 380, 450, 490, 630nm
- OD accuracy:<1% at 2.5 OD typical
- OD linearity:<1% at 2.5 OD
- OD repeatability:<0.5% at 2.5 OD typical
- Reading speed:12 Secs Single wavelength Regular Mode
Specifications
| Manufacturer | BioTek |
| Model | ELx808 IU (BioWhittaker) |
| Condition | Used |
| Stock Number | 14666677 |
| Warranty | Yes |
| Detection method | Absorbance 340-900 nm (Filter Dependant) |
| * Filters supplied | 380, 450, 490, 630nm |
| * Onboard Incubator | YES |
| * Shaking | YES |
| Read method | Endpoint, kinetic, linear scanning |
| Microplate types | 96-well plates |
| Software | Gen5 ™ Data Analysis Software Included |
| Onboard software | 55 user-programmable protocols |
| Bandpass | 10 nm |
| Dynamic range | 0 to 3.0 OD |
| Resolution | 0.001 OD |
| Od accuracy | <1% at 2.5 OD typical |
| Reading speed | 12 Secs Single wavelength Regular Mode |
