ISMATEC MCP-Z Standard Peristaltic Programable Pump

ISMATEC MCP-Z Standard Peristaltic Programable Pump w WARRANTY

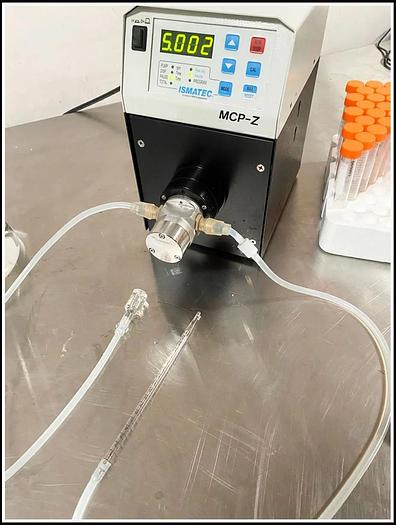

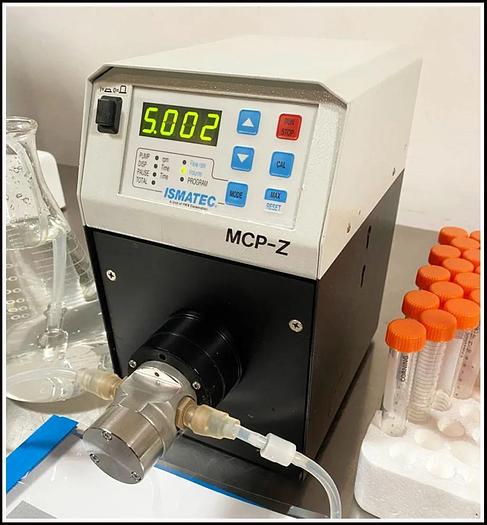

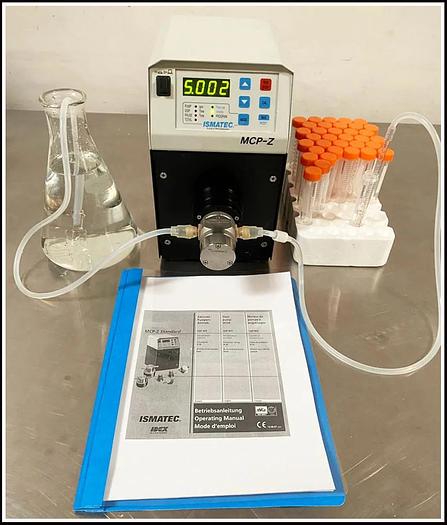

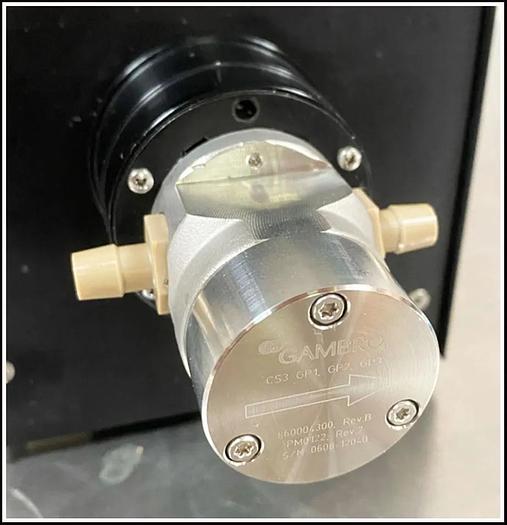

This is a Good Working Ismatec MCP Programmable Peristaltic Dispensing Pump with Gambro Single Port Gear Pump Head. The Actual Item Pictured is the One Being Offered. Unit Comes as Pictured with Gambro Head,  Inlet/Outlet Fittings, Tubing, Tip (on one end), Sinker (on one end),  User's Manual, and Power Cord. Unit will be Guaranteed for 30 Days Allowing Enough Time for Your Lab To Fully Test and Inspect.

Specifications:

• Flow rates: 1 to 7020 mL/min (depending on mounted pump-head)
• Channels: One
• Operating panel: 7 button membrane key-pad, LED display
• Memory: 4 sets of operating parameters can be stored
• Operating modes- pumping by drive speed (rpm)

1. pumping by flow rate (ml/min)
2. factory-set flow rates for all available tube sizes
3. dispensing by volume (ml) Up to 17 Liters
4. dispensing by time (0.1s up to 999hrs)
5. dispensing by volume within a pre-set time
6. interval dispensing by volume with a pause
7. interval dispensing by time with a pause
8. setting the number of dispensing cycles
9. pause time setting (from 0.1s up to 999hrs)
10. roller back-steps for drip-free dispensing
11. reversible rotation direction

• Calibrating function

1. for flow rate (ml/min)
2. for dispensing volume (ml)

• Speed: 1 - 1000 rpm, resolution 0.1 rpm
• Speed control: closed loop control for pressure independent speed
• RS232 interfaces- RS232 "in" for operation controlling via PC
• RS232 "out" for cascading up to 8 pumps
• Analog input Speed control (0-5 or 0-10V / 0-20 or 4-20mA)
• Analog output Speed monitoring (0-10VDC or 0-12 kHz)
• Digital input: Start/Stop, rotation direction, autostart
• Differential pressure: 1.5 bar (21.7 psi) possible (depending on pump-head and tubing material); small tubing diameters may allow higher pressures
• Motor typeDC motor
• Power consumption100 W
• Power: 115/230VAC; 50/60Hz
