ISMATEC MCP-Z Process Peristaltic Programmable Pump w WARRANTY

ISMATEC MCP-Z Process Peristaltic Programmable Pump w WARRANTY

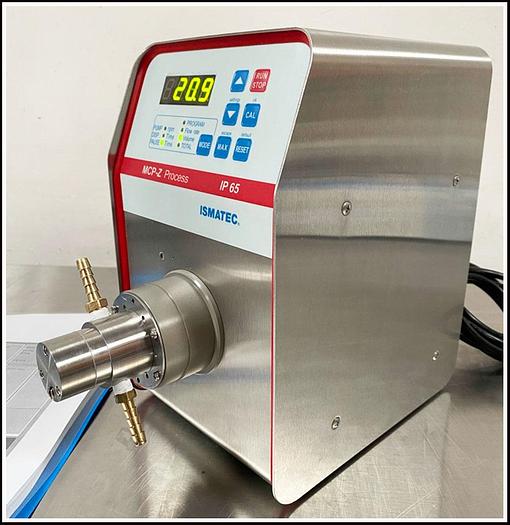

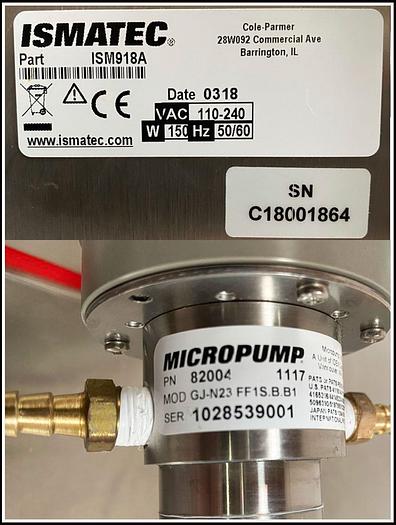

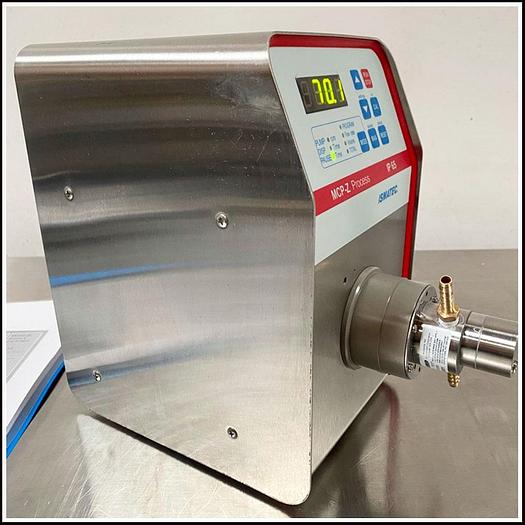

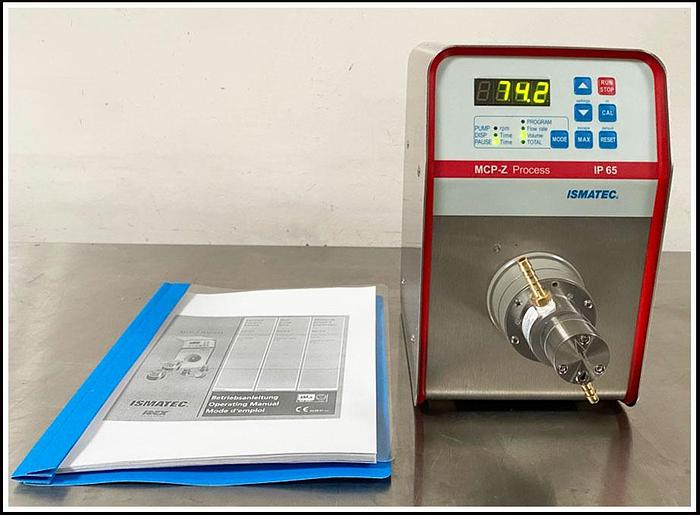

This is a Good Working Ismatec MCP-Z Process Programmable Peristaltic Dispensing Pump (Part# ISM918A) with Single Port Magnetic Drive Pump Head (Part# 82004 1117). Unit Comes as Pictured with Micropump Head (Part# 82004 1117), Inlet/Outlet Fittings, User's Manual, and Power Cord. Unit will be Guaranteed for 30 Days Allowing Enough Time for Your Lab To Fully Test and Inspect.

Specifications:

• Flow rates: 1 to 7020 mL/min (depending on mounted pump-head)
• Channels: One
• Operating panel: 7 button membrane key-pad, LED display
• Memory: 4 sets of operating parameters can be stored
• Operating modes- pumping by drive speed (rpm)

1. pumping by flow rate (ml/min)
2. factory-set flow rates for all available tube sizes
3. dispensing by volume (ml) Up to 17 Liters
4. dispensing by time (0.1s up to 999hrs)
5. dispensing by volume within a pre-set time
6. interval dispensing by volume with a pause
7. interval dispensing by time with a pause
8. setting the number of dispensing cycles
9. pause time setting (from 0.1s up to 999hrs)
10. roller back-steps for drip-free dispensing
11. reversible rotation direction

• Calibrating function

1. for flow rate (ml/min)
2. for dispensing volume (ml)

• Speed: 60 - 6000 rpm, resolution 0.1 rpm
• Speed control: closed loop control for pressure independent speed

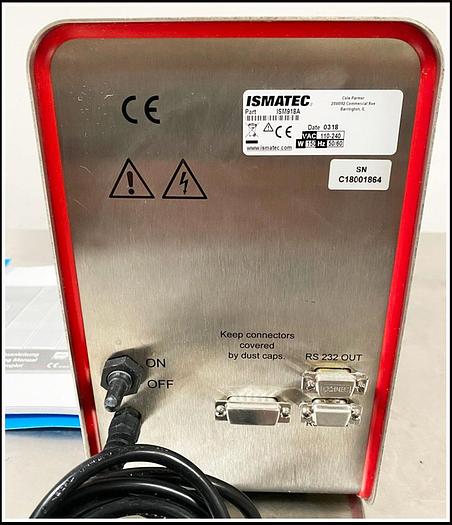

• RS232 interfaces- RS232 "in" for operation controlling via PC
• RS232 "out" for cascading up to 8 pumps
• Analog input Speed control (0-5 or 0-10V / 0-20 or 4-20mA)
• Analog output Speed monitoring (0-10VDC or 0-12 kHz)
• Digital input: Start/Stop, rotation direction, autostart
• Differential pressure: 1.5 bar (21.7 psi) possible (depending on pump-head and tubing material); small tubing diameters may allow higher pressures
• Motor Type DC motor
• Power consumption100 W
• Power supply115/230VAC; 50/60Hz
